Reflective Float Glass:
Enhancing Energy Efficiency and Aesthetics

Reflective float glass  is a range of medium solar control performance on-line coated clear or body-tinted glass, with low light transmittance and medium light reflectance. Produced with international advanced on-line coating technology to produce top grade Float Glass. The technology (CVD) follows the sediment principle of chemical gases and films and it is formed inside tin-trough section of float technology under the conditions of stable temperature, unique circumstances and clean surface. Chemical gases are continuously and uniformly piped to glass surface via special equipment and decomposition so the crystal silicon film is settled on the surface. This technique produces a very high quality coated glass.

On-line coated glass is able to resist erosion better than most ordinarily coated glass. On-line coated glass is commonly used for skyscrapers, building decorations, hollow and interlining glasses. The main color is green, blue and grey with high transmitting ratio and reflection. It provides lighting, energy-saving, decorating and environmental protecting purposes all in one. It is an ideal choice for today's modern buildings.

Reflective float glass is a highly functional material that combines energy efficiency with aesthetic appeal, making it a popular choice for a wide range of applications in both residential and commercial settings. Its ability to reduce heat gain, control glare, and enhance the overall look of buildings makes it an excellent option for modern architecture.

Reflective float glass offers a unique combination of energy efficiency and aesthetic appeal, making it a popular choice for a wide range of applications in residential, commercial, and public settings.

Features

- Reflective Coating : The glass is coated with a thin layer of metal or ceramic compounds using vacuum magnetron sputtering technology. This coating significantly reduces solar radiation transmission, helping to control light and energy flow through buildings.
- Energy Efficiency : By reflecting solar radiation, reflective float glass helps to reduce heat gain inside buildings, making it an excellent choice for energy-efficient designs.
- Aesthetic Appeal : Available in a variety of colors such as gold, silver, green, pink, gray, blue, bronze, and more. These colors add a decorative element to buildings while providing functional benefits.
- High Light Transmission : Despite its reflective properties, reflective float glass maintains high visible light transmission, ensuring well-lit interiors.
- UV Protection : The reflective coating also reduces the transmission of ultraviolet (UV) rays, protecting interiors from potential UV damage.
- Durability : The coating is durable and can withstand various processes like cutting, bending, and tempering without affecting its reflective properties.
- Wide Range of Applications : Suitable for building facades, windows, skylights, interior partitions, and decorative elements. Its versatility makes it a popular choice for both residential and commercial projects.

Benefits.

- Reduced Heat Gain : Reflective float glass helps reduce solar heat gain by reflecting a significant portion of solar radiation. This maintains cooler indoor temperatures, reducing the need for air conditioning and lowering energy costs.
- Improved Insulation : When used in insulated glass units (IGUs), it enhances thermal insulation, further improving energy efficiency and comfort within buildings.
- Reduced Glare : The reflective coating helps to reduce glare from direct sunlight, creating a more comfortable and visually pleasing indoor environment. This is particularly beneficial for office spaces, retail environments, and residential settings.
- Increased Privacy : The reflective surface provides increased privacy by limiting visibility from the outside while maintaining clear views from the inside. This is ideal for office buildings, residential properties, and commercial spaces.
- Low Maintenance : It requires minimal maintenance to keep it looking pristine. Its smooth surface is easy to clean and maintain.
- Sustainable Building Material : Reflective float glass contributes to sustainable building practices by enhancing energy efficiency and reducing the carbon footprint of buildings. Its production involves environmentally friendly materials and processes.

Application

1. Building Facades :

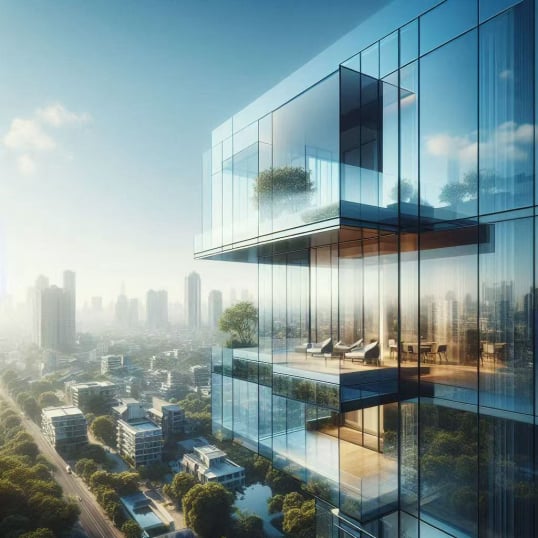

- Curtain Walls : Enhances the energy efficiency and aesthetic appeal of building exteriors. Reflective float glass helps reduce heat gain and provides a sleek, modern look.
- Exterior Cladding : Used as a decorative and functional element in exterior cladding, providing both thermal insulation and a contemporary appearance.

2. Windows and Glazing :
- Residential Windows : Improves energy efficiency in homes by reflecting solar radiation and reducing heat gain. Ideal for large windows and sliding doors.
- Commercial Glazing : Widely used in commercial buildings for windows and glass partitions, offering energy-saving benefits and a professional appearance.
- Skylights : Provides natural light while reducing glare and heat transmission, making spaces more comfortable and energy-efficient.

3. Insulated Glass Units (IGUs) :
- Double Glazing : Used in insulated glass units to improve thermal insulation and energy efficiency. Reflective coatings help in reducing heat transfer and maintaining indoor comfort.
- Triple Glazing : Enhances energy performance even further, making it suitable for cold climates and energy-efficient building designs.

4. Solar Control :
- Solar Protection : Reflective float glass helps in controlling solar heat gain, making it ideal for buildings in hot climates. It reduces the need for air conditioning and lowers energy costs.
- UV Protection : Protects interiors from harmful UV rays, reducing the risk of fading for furnishings, artwork, and other interior elements.

Range of Colors

1. Silver :
- Provides a classic, sleek, and modern look.

2. Bronze :
- Offers a warm, earthy tone that adds a touch of elegance and sophistication.
- Ideal for both traditional and contemporary designs.

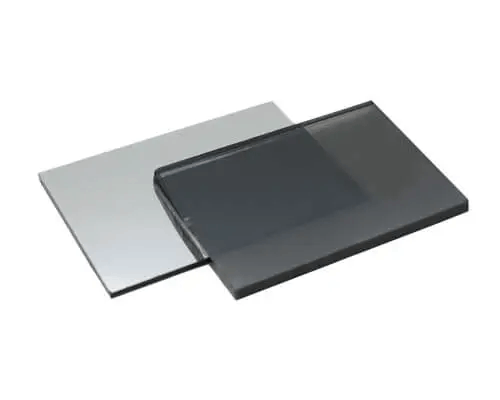

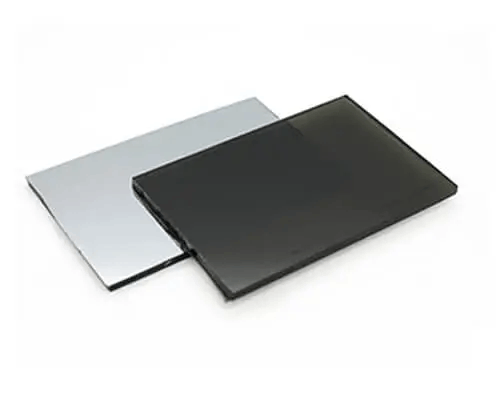

3. Gray :
- Adds a subtle and understated elegance to building facades and interiors.

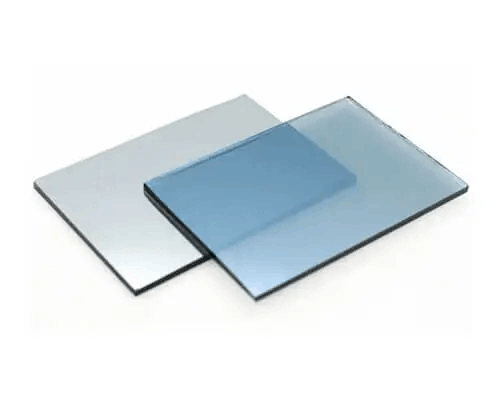

4. Blue :
- Creates a cool and calming effect, perfect for modern and innovative designs.
- Often used in office buildings, hotels, and high-rise residential projects.

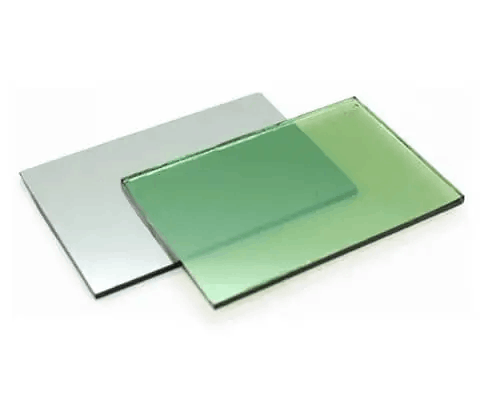

5. Green :
- Provides a refreshing and natural look, enhancing the connection with the environment.

6. Gold :
- Adds a luxurious and opulent touch to architectural designs.
- Often used in high-end commercial and residential buildings.

7. Pink :
- Offers a unique and contemporary look, adding a playful and vibrant touch.
- Ideal for creative and modern architectural projects.

8. Custom Colors :
- Reflective float glass can be customized to match specific design requirements.
- Custom colors allow for personalized and unique architectural expressions.

Product Specification

1. Thickness :
- Available in various thicknesses: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, and 12mm.
- Customizable thickness options to meet specific project requirements.

2. Dimensions :
- Standard sizes: 1830mm x 1220mm, 2440mm x 1830mm, 3210mm x 2250mm, up to 3660mm x 2440mm.
- Custom dimensions available upon request to fit unique applications.

3. Reflective Coating :
- Coated with a thin layer of metal or ceramic compounds using vacuum magnetron sputtering technology.
- Reflective coating available in various colors, including silver, bronze, gray, blue, green, and more.
- High durability and resistance to weathering and environmental factors.

4. Light Transmission and Solar Control :
- Visible Light Transmission (VLT): Varies based on coating and glass thickness, typically ranging from 10% to 40%.
- Solar Heat Gain Coefficient (SHGC): Typically ranges from 0.20 to 0.40, providing effective solar control.
- UV Protection: Reduces transmission of harmful UV rays, protecting interiors from potential UV damage.

5. Thermal Performance :
- Improves energy efficiency by reducing heat gain and minimizing cooling costs.
- Can be combined with insulated glass units (IGUs) for enhanced thermal insulation.

6. Safety Features :
- Available with additional safety features such as tempered or laminated options.
- Meets industry standards for safety and durability.

*All colors are for reference only.. it will vary a little with different batch of productions.
